中空玻璃是一種由兩層或多層平板（浮法）玻璃與密封膠、干燥劑等材料經加工制作而成的隔音隔熱性能良好的復合型建筑材料。由于這種門窗具有優良的節能效果和防噪音功能，因而被廣泛地應用在建筑物的外墻窗框上。目前市場上銷售的中空玻璃主要有單面鍍膜和中空夾絲兩類產品。這兩種產品的生產過程相同但生產工藝不同：
Insulating glass is a kind of composite building material with good sound insulation and heat insulation performance, which is made by processing two or more layers of flat (float) glass, sealant, desiccant and other materials. Because of its excellent energy-saving effect and anti-noise function, these doors and windows are widely used in the outer wall window frames of buildings. At present, the insulating glass sold on the market mainly includes single-sided coating and hollow sandwich. The production process of these two products is the same, but the production process is different:
1、單面鍍膜的制作過程：將原片玻璃用輥道爐加熱至軟化狀態；然后將其放入真空罐內抽成負壓并保持一段時間使玻璃均勻吸收氣體；將已制好的薄膜貼在玻璃表面進行烘烤即可制成成品。
1. The production process of single-sided coating: the original glass is heated to the softening state by roller furnace; Then put it into the vacuum tank and draw it into negative pressure and keep it for a period of time to make the glass absorb the gas evenly; The finished product can be made by pasting the prepared film on the glass surface for baking.
2、中空鉗絲的生產過度：把預處理過的玻璃放在鋼化機上加熱到一定的溫度后取出冷卻備用。然后把經過清洗的聚酯薄膜或PET塑料薄片置于涂布機里均勻的涂抹于玻璃表面上，再通過熱合機等機械裝置使其粘接牢固形成中間層的隔聲屏障。再將雙面鋁箔紙貼在中空的兩側邊緣處作為裝飾之用。
2. Excessive production of hollow clamp wire: first, put the pretreated glass on the tempering machine to heat it to a certain temperature, and then take it out for cooling. Then put the cleaned polyester film or PET plastic sheet in the coating machine and evenly smear it on the glass surface, and then make it firmly bonded to form the sound insulation barrier of the middle layer through mechanical devices such as the heat sealing machine. Then paste the double-sided aluminum foil paper on the two sides of the hollow for decoration.

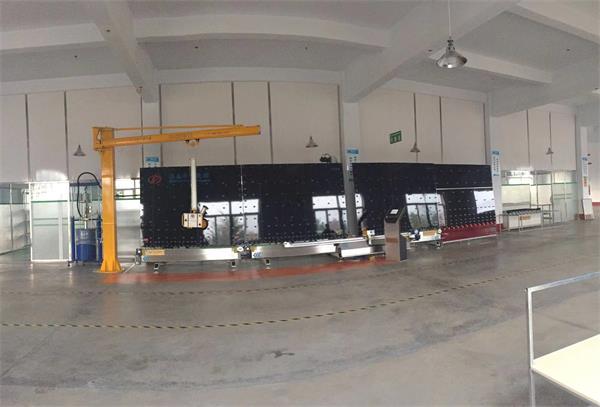

全自動化的中空玻線生產設備主要由以下幾部分組成：
The fully automatic hollow glass line production equipment mainly consists of the following parts:
（1）玻璃成型臺架及控制系統；
(1) Glass forming bench and control system;
（2）全自動中空玻璃切割系統；
(2) Full-automatic insulating glass cutting system;
（3）雙側邊封口包裝系統和在線檢測控制柜；
(3) Double side sealing packaging system and online detection control cabinet;
（4）在線除塵除濕空調機組；
(4) Online dedusting and dehumidification air conditioning unit;
（5）自動噴淋式噴涂烘干箱；
(5) Automatic spraying drying oven;
（6）空氣凈化過濾循環系統等.；
(6) Air purification filtration circulation system, etc;

一、玻璃成型臺架：
1、 Glass forming bench:
采用雙軸無級可調速電機帶動減速器傳動機構來驅動各運動部件工作運轉，從而完成對玻璃片的定位、送料、裁切以及排廢等工作程序。該結構簡單可靠，操作方便靈活。
Double-axis stepless adjustable speed motor is used to drive the transmission mechanism of the reducer to drive all moving parts to work, so as to complete the working procedures of positioning, feeding, cutting and waste disposal of the glass sheet. The structure is simple and reliable, and the operation is convenient and flexible.
二.全自動中空玻璃切割系統：
2、 Full-automatic insulating glass cutting system:
1.切刀形式為圓弧狀刀片。
1. The form of cutter is circular blade.
2.刀頭直徑有Φ30mm、Φ35mm兩種規格可供選擇。其中Φ30m適用于薄板厚度小于6毫米的產品切割；而Φ35m則適合于厚板的切割使用。
2. Cutter head diameter: Φ 30mm、 Φ Two specifications of 35mm are available. among Φ 30m is suitable for cutting products with sheet thickness less than 6mm; and Φ 35m is suitable for cutting thick plates.
3.在實際工作中根據需要可隨時更換各種形狀刀具以適應不同的工藝要求，如圓形、三角形、橢圓形、方形、多邊形等等。
3. In actual work, various shapes of cutters can be replaced at any time to meet different process requirements, such as round, triangle, ellipse, square, polygon, etc.
4.當切割時遇到特殊尺寸要求的制品時可及時調整割條長度以達到切割位置，保證產品質量。
4. When cutting products with special size requirements, the length of the cutting strip can be adjusted in time to reach the cutting position and ensure the product quality.
以上就是為大家介紹的有關中空玻璃丁基膠涂布機詳細的介紹,希望對您有所幫助.如果您有什么疑問的話,歡迎聯系我們.我們將以的態度,為您提供服務http://www.txxfj.com
The above is the detailed introduction of the butyl rubber coating machine for insulating glass introduced for you. I hope it can help you. If you have any questions, please contact us. We will provide services for you with our attitude http://www.txxfj.com
