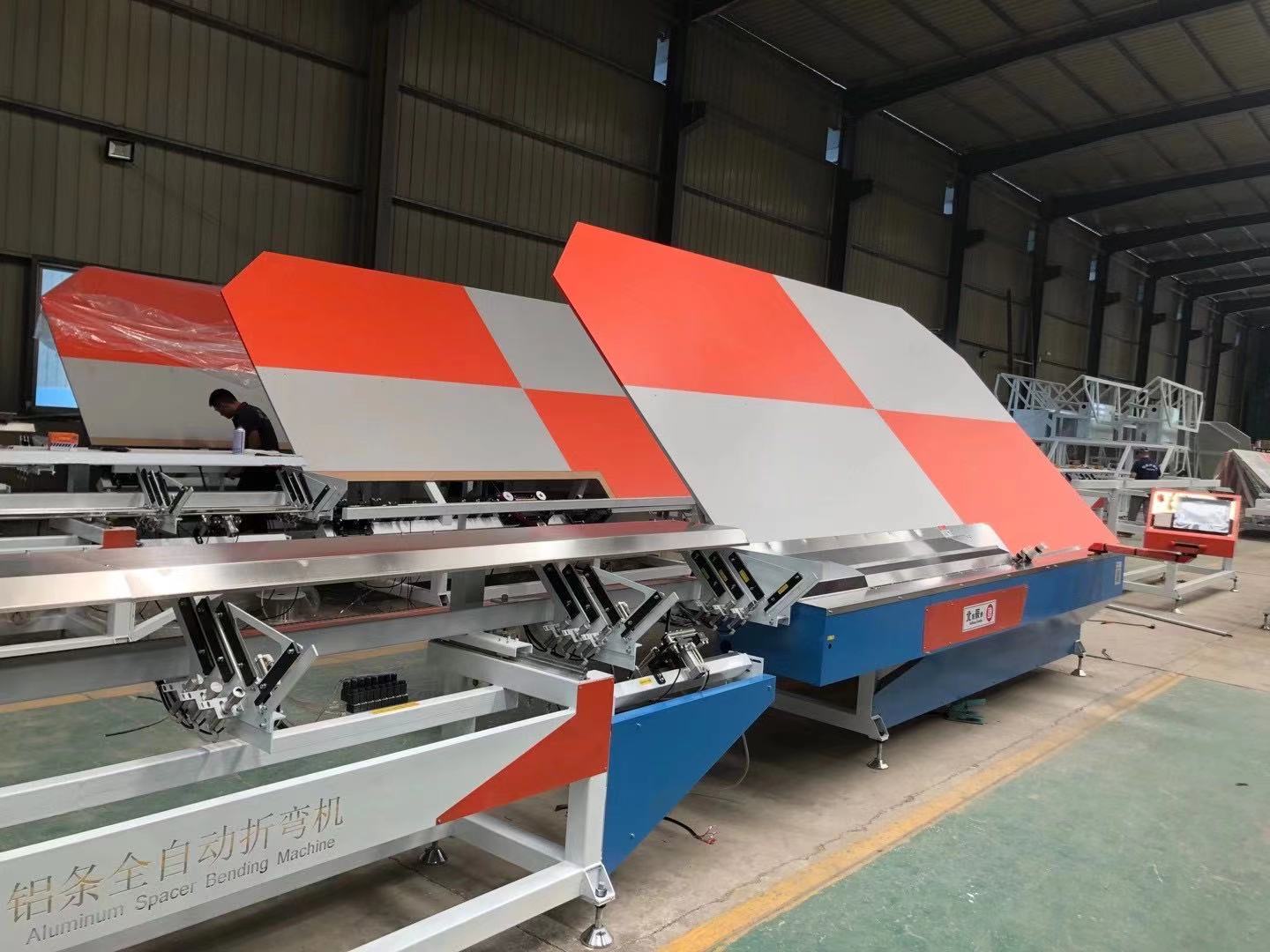

鋁條折彎機是一種能夠對薄板進行折彎的機器，其結構主要包括支架、工作臺和夾緊板，工作臺置于支架上，工作臺由底座和壓板構成，底座通過鉸鏈與夾緊板相連，底座由座殼、線圈和蓋板組成，線圈置于座殼的凹陷內，凹陷頂部覆有蓋板。使用時由導線對線圈通電，通電后對壓板產生引力，從而實現對壓板和底座之間薄板的夾持。
The aluminum bar bending machine is a machine that can bend thin plates. Its structure mainly includes a bracket, a workbench and a clamping plate. The workbench is placed on the bracket, and the workbench is composed of a base and a pressing plate. The base is connected with the clamping plate through a hinge. The base is composed of a base shell, a coil and a cover plate. The coil is placed in the recess of the base shell, and the top of the recess is covered with a cover plate. When in use, the coil is energized by the wire, which will generate gravity on the pressing plate, so as to achieve the clamping of the thin plate between the pressing plate and the base.
鋁條折彎機結構特點:
Structural features of aluminum bar bending machine:
1、采用全鋼焊結構，具有足夠的強度和剛性;
1. All steel welding structure is adopted, with sufficient strength and rigidity;
2、液壓上傳動，機床兩端的油缸安置于滑塊上，直接驅動滑動工作;
2. Hydraulic upward transmission, the oil cylinders at both ends of the machine tool are arranged on the sliding block to directly drive the sliding work;
3、滑塊同步機構采用扭軸強迫同步;
3. The slider synchronous mechanism adopts torsion shaft forced synchronization;
4、采用機械檔塊結構，穩定可靠;
4. Mechanical block structure is adopted, which is stable and reliable;
5、滑塊行程機動快速調，手動微調，計數器顯示;
5. The slider stroke can be adjusted quickly and manually, and the counter can be displayed;
6、斜楔式的撓度補償機構，以保證獲得較高的折彎精度。
6. Wedge type deflection compensation mechanism to ensure higher bending accuracy.
鋁條折彎機保養與維護:
Maintenance of aluminum bar bending machine:
在進行機床保養或擦機前，應將上模對準下模后放下關機，直至工作完畢，如需進行開機或其它操作，應將模式選擇在手動，并確保。其保養內容如下：
Before machine tool maintenance or cleaning, the upper die should be aligned with the lower die, and then put down and shut down until the work is completed. If it is necessary to start up or perform other operations, the mode should be set to manual and ensure that. The maintenance contents are as follows

1、液壓油路
1. Hydraulic oil circuit
1)每周檢查油箱油位，如進行液壓系統維修后也應檢查，油位低于油窗應加注液壓油;
1) Check the oil level of the oil tank every week. If the oil level is lower than the oil window, add hydraulic oil;
2)本機所用液壓油為ISO HM46或MOBIL DTE25;
2) The hydraulic oil used in this machine is ISO HM46 or MOBIL DTE25;
3)新機工作2000小時后應換油，以后每工作4000～6000小時后應換油，每次換油，應清洗油箱;
3) The oil of the new machine should be changed after 2000 hours of operation, and after every 4000~6000 hours of operation, the oil tank should be cleaned every time;
4)系統油溫應在35℃～60℃之間，不得超過70℃，如過高會導致油質及配件的變質損壞。
4) The system oil temperature shall be between 35 ℃ and 60 ℃, and shall not exceed 70 ℃. If it is too high, the oil quality and accessories will be deteriorated and damaged.
2、過濾器
2. Filter
1)每次換油時，過濾器應更換或*清洗;
1) The filter shall be replaced or cleaned every time the oil is changed;
2)機床有相關報警或油質不干凈等其它過濾器異常，應更換;
2) If the machine tool has related alarms or other filters are abnormal, such as dirty oil, they should be replaced;
3)油箱上的空氣過濾器，每3個月進行檢查清洗，1年更換。
3) The air filter on the oil tank shall be checked and cleaned every 3 months and replaced every 1 year.
3、液壓部件
3. Hydraulic components
1)每月清潔液壓部件(基板、閥、電機、泵、油管等)，防止臟物進入系統，不能使用清潔劑;
1) Clean hydraulic components (baseplate, valve, motor, pump, oil pipe, etc.) every month to prevent dirt from entering the system, and do not use detergent;
2)新機使用一個月后，檢查各油管彎曲處有無變形，如有異常應予更換，使用兩個月后，應緊固所有配件的連接處，進行此項工作時應關機，系統無壓力。
2) After the new machine has been used for one month, check whether there is deformation at the bending of each oil pipe. If there is any abnormality, replace it. After two months of use, fasten the connection of all accessories. Shut down the machine when doing this work, and the system has no pressure.
鋁條折彎機工作原理:
Working principle of aluminum bar bending machine:
液壓折彎機包括支架、工作臺和夾緊板，工作臺置于支架上，工作臺由底座和壓板構成，底座通過鉸鏈與夾緊板相連，底座由座殼、線圈和蓋板組成，線圈置于座殼的凹陷內，凹陷頂部覆有蓋板。
The hydraulic bending machine consists of a support, a workbench and a clamping plate. The workbench is placed on the support. The workbench is composed of a base and a pressing plate. The base is connected with the clamping plate through a hinge. The base is composed of a base shell, a coil and a cover plate. The coil is placed in the recess of the base shell, and the top of the recess is covered with a cover plate.
使用時由導線對線圈通電，通電后對壓板產生引力，從而實現對壓板和底座之間薄板的夾持。由于采用了電磁力夾持，使得壓板可以做成多種工件要求，而且可對有側壁的工件進行加工。折彎機可以通過更換折彎機模具，從而滿足各種工件的需求。
When in use, the coil is energized by the wire, which will generate gravity on the pressing plate, so as to achieve the clamping of the thin plate between the pressing plate and the base. Because of the electromagnetic force clamping, the pressing plate can be made into a variety of workpiece requirements, and the workpiece with side wall can be processed. The bending machine can meet the needs of various workpieces by replacing the bending machine die.
以上就是為大家介紹的有關全自動鋁條折彎機詳細的介紹,希望對您有所幫助.如果您有什么疑問的話,歡迎聯系我們.我們將以的態度,為您提供服務http://www.txxfj.com
The above is a detailed introduction to the automatic aluminum bar bending machine. I hope it will be helpful to you. If you have any questions, please contact us. We will provide services for you with our attitude http://www.txxfj.com
